D047 clock spring coupling

Make

Fiat

Model

Bravo Factory Service Manual

Year

2007–2014

Section

Intermediate couplings › D047 clock spring coupling

Connectors and pin-outsD047 clock spring coupling

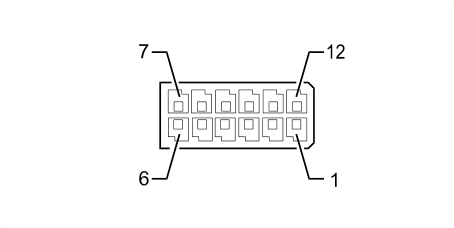

D047 CLOCK SPRING COUPLING

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		VB		See D001 FRONT/DASHBOARD COUPLING	5
2		NZ		See M001I BODY COMPUTER (DASHBOARD)	8
3		BM		See M001H BODY COMPUTER (DASHBOARD)	15
4		LM		See M001H BODY COMPUTER (DASHBOARD)	27
5		LB		See	3
6		N		See C038 EARTH ON CENTRE TUNNEL
9		VG		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	19
10		VN		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	20
11		MH		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	16
12		MG		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	15
