D212 bumper/rear coupling

Make

Fiat

Model

Bravo Factory Service Manual

Year

2007–2014

Section

Intermediate couplings › D212 bumper/rear coupling

Connectors and pin-outsD212 bumper/rear coupling

D212 BUMPER/REAR COUPLING

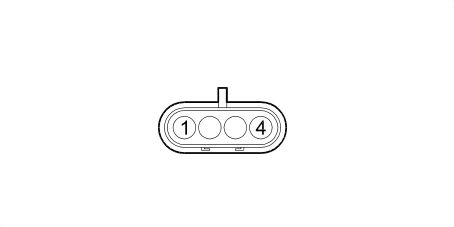

D212A – Rear bumper

Right hand drive

Wiring	Colour
See 29 REAR BUMPER	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	HN		See F033 REVERSING LIGHT	1
2	1	MH		See F032 REAR FOG LAMP	1
3		GV	X	See F051 RIGHT NUMBER PLATE LIGHT	2
				See F050 LEFT NUMBER PLATE LIGHT	2
4	1	N	X	See F033 REVERSING LIGHT	2
				See F032 REAR FOG LAMP	2
				See F051 RIGHT NUMBER PLATE LIGHT	1
				See F050 LEFT NUMBER PLATE LIGHT	1

All versions

Wiring	Colour
See 29 REAR BUMPER	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	MH		See F032 REAR FOG LAMP	1
2	1	HN		See F033 REVERSING LIGHT	1
3		GV	X	See F051 RIGHT NUMBER PLATE LIGHT	2
				See F050 LEFT NUMBER PLATE LIGHT	2
4	1	N	X	See F033 REVERSING LIGHT	2
				See F032 REAR FOG LAMP	2
				See F051 RIGHT NUMBER PLATE LIGHT	1
				See F050 LEFT NUMBER PLATE LIGHT	1

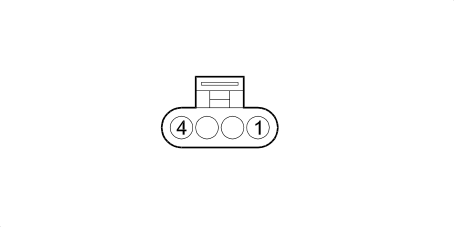

D212A – Rear

Right hand drive

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	HN		See B002D JUNCTION UNIT UNDER DASHBOARD (REAR)	7
2	1	MH		See M001E BODY COMPUTER (REAR)	43
3		GV		See M001D BODY COMPUTER (REAR)	12
4	1	N		See C020B PASSENGER SIDE DASHBOARD EARTH (REAR)

All versions

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	MH		See M001E BODY COMPUTER (REAR)	43
2	1	HN		See B002D JUNCTION UNIT UNDER DASHBOARD (REAR)	7
3		GV		See M001D BODY COMPUTER (REAR)	12
4	1	N		See C020B PASSENGER SIDE DASHBOARD EARTH (REAR)

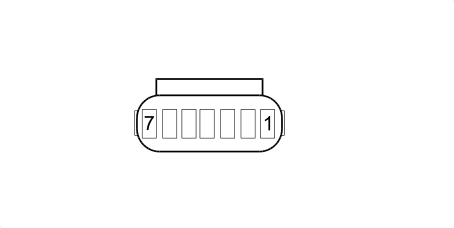

D212B – Rear bumper

Wiring	Colour
See 29 REAR BUMPER	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		MB		See K097H PARKING SENSORS (REAR BUMPER)	3
2		ML		See K097G PARKING SENSORS (REAR BUMPER)	3
3		MH		See K097F PARKING SENSORS (REAR BUMPER)	3
4		MV		See K097E PARKING SENSORS (REAR BUMPER)	3
5		CB	X	See K097H PARKING SENSORS (REAR BUMPER)	1
				See K097G PARKING SENSORS (REAR BUMPER)	1
				See K097F PARKING SENSORS (REAR BUMPER)	1
				See K097E PARKING SENSORS (REAR BUMPER)	1
6		NZ	X	See K097H PARKING SENSORS (REAR BUMPER)	2
				See K097G PARKING SENSORS (REAR BUMPER)	2
				See K097F PARKING SENSORS (REAR BUMPER)	2
				See K097E PARKING SENSORS (REAR BUMPER)	2

D212B – Rear

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		MB		See M084B PARKING SENSOR CONTROL UNIT (REAR)	5
2		ML		See M084B PARKING SENSOR CONTROL UNIT (REAR)	3
3		MH		See M084B PARKING SENSOR CONTROL UNIT (REAR)	2
4		MV		See M084B PARKING SENSOR CONTROL UNIT (REAR)	1
5		CB		See M084B PARKING SENSOR CONTROL UNIT (REAR)	4
6		NZ		See M084B PARKING SENSOR CONTROL UNIT (REAR)	8
