F033 reversing light

Make

Fiat

Model

Bravo Factory Service Manual

Year

2007–2014

Section

Exterior lights › F033 reversing light

Connectors and pin-outsF033 reversing light

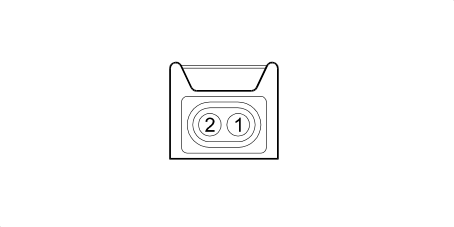

F033 REVERSING LIGHT

Right hand drive

Wiring	Colour
See 29 REAR BUMPER	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	HN		See D212A BUMPER/REAR COUPLING (REAR BUMPER)	1
2	1	N	X	See F032 REAR FOG LAMP	2
				See D212A BUMPER/REAR COUPLING (REAR BUMPER)	4
				See F051 RIGHT NUMBER PLATE LIGHT	1
				See F050 LEFT NUMBER PLATE LIGHT	1

All versions

Wiring	Colour
See 29 REAR BUMPER	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	MH		See D212A BUMPER/REAR COUPLING (REAR BUMPER)	2
2	1	N	X	See F032 REAR FOG LAMP	2
				See D212A BUMPER/REAR COUPLING (REAR BUMPER)	4
				See F051 RIGHT NUMBER PLATE LIGHT	1
				See F050 LEFT NUMBER PLATE LIGHT	1
