F020 left side repeater
- Make
- Fiat
- Model
- Bravo Factory Service Manual
- Year
- 2007–2014
- Section
- Exterior lights › F020 left side repeater
Connectors and pin-outsF020 left side repeater

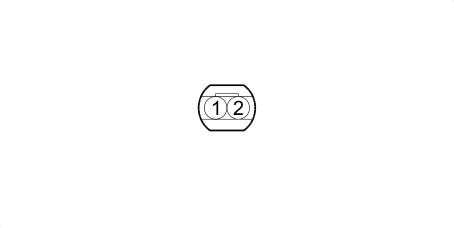

F020 LEFT SIDE REPEATER
| Wiring | Colour |
|---|---|
| See 12 FRONT | MARRONE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | N | See C010B LEFT FRONT EARTH (FRONT) | |||
| 2 | LR | See M001A BODY COMPUTER (FRONT) | 5 | ||
