F010 left headlamp

Make

Fiat

Model

Bravo Factory Service Manual

Year

2007–2014

Section

Exterior lights › F010 left headlamp

Connectors and pin-outsF010 left headlamp

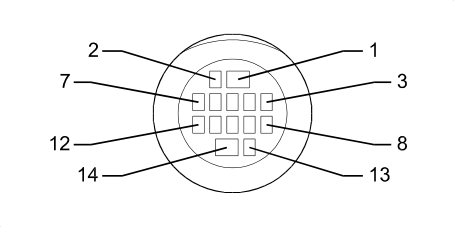

F010 LEFT HEADLAMP

Xenon Gas headlamps

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1.5	HV		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	3
2		LB		See	50
3	1	N		See C010B LEFT FRONT EARTH (FRONT)
4		GR		See	52
5		HG		See	37
6		LV	X	See M001A BODY COMPUTER (FRONT)	13
				See F011 RIGHT HEADLAMP	6
7		VH		See K001 HEADLAMP ALIGNMENT FRONT POTENTIOMETER	4
8		LR	X	See K001 HEADLAMP ALIGNMENT FRONT POTENTIOMETER	5
				See D006 FRONT/REAR COUPLING	11
9		VM		See F011 RIGHT HEADLAMP	9
10		ZL		See D006 FRONT/REAR COUPLING	12
11		BM	X	See	47
				See F011 RIGHT HEADLAMP	11
12		NZ	X	See D006 FRONT/REAR COUPLING	1
				See K001 HEADLAMP ALIGNMENT FRONT POTENTIOMETER	1
13		VN		See B001A JUNCTION UNIT (FRONT)	25
14	1.5	N		See C010A LEFT FRONT EARTH (FRONT)

All versions

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HV		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	3
2		LB		See	50
4		GR		See	52
6		HL		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	2
9		GH		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	1
13		VN		See B001A JUNCTION UNIT (FRONT)	25
14	1	N		See C010B LEFT FRONT EARTH (FRONT)
