I031 clutch pedal switch

Make

Fiat

Model

Bravo Factory Service Manual

Year

2007–2014

Section

Switches › I031 clutch pedal switch

Connectors and pin-outsI031 clutch pedal switch

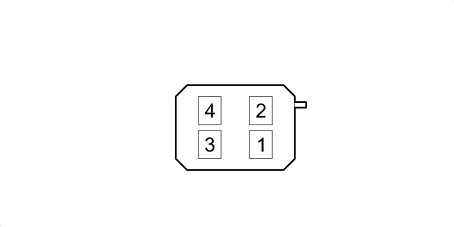

I031 CLUTCH PEDAL SWITCH

1.4 16v TJet

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2		N		See C010B LEFT FRONT EARTH (FRONT)
4		MN		See M010A ENGINE MANAGEMENT ECU (FRONT)	63

1.9 JTD 8v, 1.9 JTD 16v

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2		N		See C010B LEFT FRONT EARTH (FRONT)
4		MN		See M010A ENGINE MANAGEMENT ECU (FRONT)	79

1.4 16v

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2		N		See C010B LEFT FRONT EARTH (FRONT)
4		MN		See D004 FRONT/ENGINE COUPLING	C6
