I020 reversing lights switch

Make

Fiat

Model

Bravo Factory Service Manual

Year

2007–2014

Section

Switches › I020 reversing lights switch

Connectors and pin-outsI020 reversing lights switch

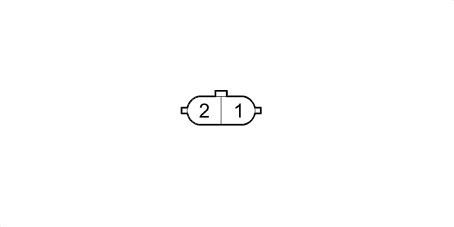

I020 REVERSING LIGHTS SWITCH

1.4 16v

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		MR		See D004 FRONT/ENGINE COUPLING	A08
2		MN		See D004 FRONT/ENGINE COUPLING	A01

1.4 16v TJet, 1.9 JTD 8v, 1.9 JTD 16v

Wiring	Colour
See 41 BATTERY POSITIVE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	B		See D187 FRONT/REVERSING SWITCH BRIDGE COUPLING	2
2	1	LB		See D187 FRONT/REVERSING SWITCH BRIDGE COUPLING	1
