I030 brake pedal switch

Make

Fiat

Model

Bravo Factory Service Manual

Year

2007–2014

Section

Switches › I030 brake pedal switch

Connectors and pin-outsI030 brake pedal switch

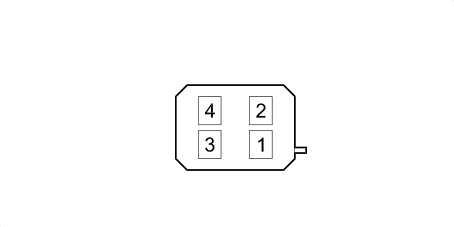

I030 BRAKE PEDAL SWITCH

1.4 16v TJet

Wiring	Colour
See 12 FRONT	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		VN		See M010A ENGINE MANAGEMENT ECU (FRONT)	82
2		VB		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	15
3		LB		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	17
4		LR		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	14

1.9 JTD 8v, 1.9 JTD 16v

Wiring	Colour
See 12 FRONT	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		VN		See M010A ENGINE MANAGEMENT ECU (FRONT)	80
2		VB		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	15
3		LB		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	17
4		LR		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	14

1.4 16v

Wiring	Colour
See 12 FRONT	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		VN		See D004 FRONT/ENGINE COUPLING	A2
2		VB		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	15
3		LB		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	17
4		LR		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	14
