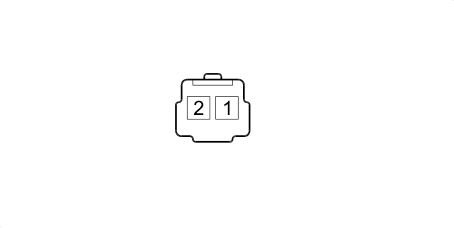

I033 SWITCH ON BOOT OUTER HANDLE
| Wiring | Colour |
|---|---|
| See 25 REAR |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | BC | See M001E BODY COMPUTER (REAR) | 47 | ||
| 2 | N | See C030B LEFT REAR EARTH (REAR) | |||
