Q031 passenger side bag
- Make
- Fiat
- Model
- Bravo Factory Service Manual
- Year
- 2007–2014
- Section
- Safety devices › Q031 passenger side bag
Connectors and pin-outsQ031 passenger side bag
Q031 PASSENGER SIDE BAG

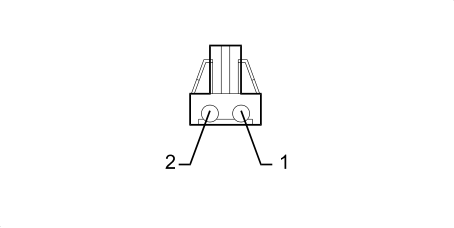

Q031A – Right seat
| Wiring | Colour |
|---|---|
| See 37 RIGHT SEAT | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | L | See D071A PASSENGER SEAT COUPLING (REAR) | 7 | ||
| 2 | M | See D071A PASSENGER SEAT COUPLING (REAR) | 8 | ||
Q031B – Right seat
| Wiring | Colour |
|---|---|
| See 37 RIGHT SEAT |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| N | See D071A PASSENGER SEAT COUPLING (REAR) | 5 | |||
