Fiat Bravo Factory Service Manual (2007-2014)21 · Connectors and pin-outs
21 · General

Q009 driver's air bag

Make
Fiat
Model
Bravo Factory Service Manual
Year
2007–2014
Section
Safety devices › Q009 driver's air bag
Connectors and pin-outsQ009 driver's air bag

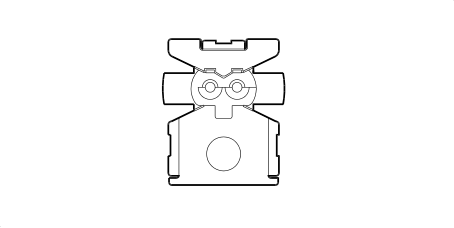

Q009 DRIVER'S AIR BAG

Q009I – Dashboard

Q009 DRIVER'S AIR BAG
WiringColour
See 20 DASHBOARDGIALLO

Q009II – Dashboard

Q009 DRIVER'S AIR BAG
WiringColour
See 20 DASHBOARDVERDE
