P143 usb socket
- Make
- Fiat
- Model
- Bravo Factory Service Manual
- Year
- 2007–2014
- Section
- Various consumers › P143 usb socket
Connectors and pin-outsP143 usb socket

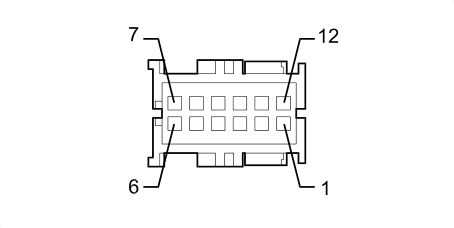

P143 USB SOCKET
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 2 | R | See M162 BLUETOOTH CONTROL UNIT | 20 | ||
| 3 | B | See M162 BLUETOOTH CONTROL UNIT | 19 | ||
| 4 | V | See M162 BLUETOOTH CONTROL UNIT | 3 | ||
| 5 | N | See M162 BLUETOOTH CONTROL UNIT | 4 | ||
| 6 | N | See M162 BLUETOOTH CONTROL UNIT | 31 | ||
