Connectors and pin-outsP020 radio

P020 RADIO

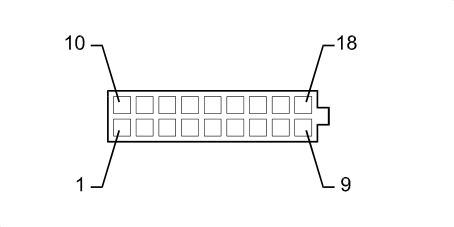

P020A – Dashboard

Wiring	Colour
See 20 DASHBOARD	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		L	X	See B002H JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	5
				See D008B AIR CONDITIONING-HEATER FRONT COUPLING (AIR CONDITIONING)	5
				See M162 BLUETOOTH CONTROL UNIT	30
				See R010 MULTIPLE TESTER CONNECTION	6
2		HV		See D020 DASHBOARD/REAR COUPLING	10
3		B	X	See B002H JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	17
				See D008B AIR CONDITIONING-HEATER FRONT COUPLING (AIR CONDITIONING)	3
				See M162 BLUETOOTH CONTROL UNIT	14
				See R010 MULTIPLE TESTER CONNECTION	14
5		RG		See D020 DASHBOARD/REAR COUPLING	12
7		RV		See B002H JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	7
8	1.5	N		See C038 EARTH ON CENTRE TUNNEL

Connect

Wiring	Colour
See 20 DASHBOARD	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		L	X	See B002H JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	5
				See D008B AIR CONDITIONING-HEATER FRONT COUPLING (AIR CONDITIONING)	5
				See R010 MULTIPLE TESTER CONNECTION	6
2		HV		See D020 DASHBOARD/REAR COUPLING	10
3		B	X	See B002H JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	17
				See D008B AIR CONDITIONING-HEATER FRONT COUPLING (AIR CONDITIONING)	3
				See R010 MULTIPLE TESTER CONNECTION	14
				See R010 MULTIPLE TESTER CONNECTION	14
4		LV		See B002H JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	13
7		RV		See B002H JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	7
8	1.5	N		See C038 EARTH ON CENTRE TUNNEL

Radio setup

Wiring	Colour
See 20 DASHBOARD	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
4	1.5	RV		See	7
6		GL	X	See M001H BODY COMPUTER (DASHBOARD)	18
				See D008B AIR CONDITIONING-HEATER FRONT COUPLING (AIR CONDITIONING)	8
				See P050 CIGAR LIGHTER/CURRENT SOCKET	1
7		LV		See	13
8	1.5	N		See C038 EARTH ON CENTRE TUNNEL

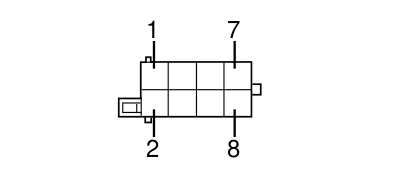

P020B – Dashboard

Wiring	Colour
See 20 DASHBOARD	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	V		See D020 DASHBOARD/REAR COUPLING	6
2	1	VN		See D020 DASHBOARD/REAR COUPLING	7
3	1	ZC		See D020 DASHBOARD/REAR COUPLING	2
4	1	ZN		See D020 DASHBOARD/REAR COUPLING	3
5	1	G		See D020 DASHBOARD/REAR COUPLING	4
6	1	GN		See D020 DASHBOARD/REAR COUPLING	5
7	1	C		See D020 DASHBOARD/REAR COUPLING	8
8	1	CN		See D020 DASHBOARD/REAR COUPLING	9

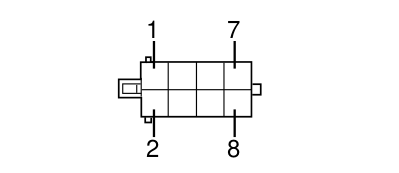

P020C – Dashboard

Connect

Wiring	Colour
See 20 DASHBOARD	GIALLO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
6		RG		See D020 DASHBOARD/REAR COUPLING	12

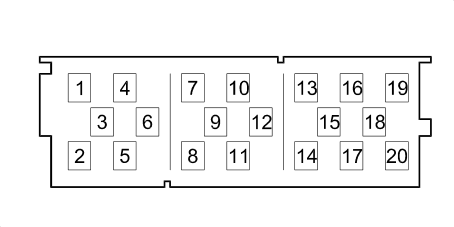

P020E – Dashboard

Blue&Me

Wiring	Colour
See 20 DASHBOARD	BLU

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
18		SCH		See M162 BLUETOOTH CONTROL UNIT	21
19		H		See M162 BLUETOOTH CONTROL UNIT	5
20		V		See M162 BLUETOOTH CONTROL UNIT	22

P020F – Dashboard

Connect

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
9		G		See D020 DASHBOARD/REAR COUPLING	14
18		N		See D020 DASHBOARD/REAR COUPLING	13

21 General
