P044 parking sensor buzzer
- Make
- Fiat
- Model
- Bravo Factory Service Manual
- Year
- 2007–2014
- Section
- Various consumers › P044 parking sensor buzzer
Connectors and pin-outsP044 parking sensor buzzer

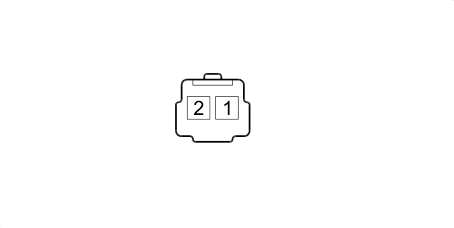

P044 PARKING SENSOR BUZZER
P044A – Rear
| Wiring | Colour |
|---|---|
| See 25 REAR | BIANCO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | VN | See M084C PARKING SENSOR CONTROL UNIT (REAR) | 14 | ||
| 2 | VR | See M084C PARKING SENSOR CONTROL UNIT (REAR) | 2 | ||
P044B – Rear
| Wiring | Colour |
|---|---|
| See 25 REAR | BIANCO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | GN | See M084A PARKING SENSOR CONTROL UNIT (REAR) | 5 | ||
| 2 | GR | See M084A PARKING SENSOR CONTROL UNIT (REAR) | 2 | ||
