P050 cigar lighter/current socket
- Make
- Fiat
- Model
- Bravo Factory Service Manual
- Year
- 2007–2014
- Section
- Various consumers › P050 cigar lighter/current socket
Connectors and pin-outsP050 cigar lighter/current socket

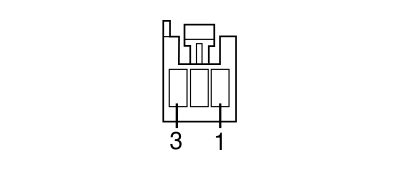

P050 CIGAR LIGHTER/CURRENT SOCKET
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD | BIANCO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | G | X | See M001H BODY COMPUTER (DASHBOARD) | 18 | |
| See D008B AIR CONDITIONING-HEATER FRONT COUPLING (AIR CONDITIONING) | 8 | ||||
| See | 6 | ||||
| 2 | 1.5 | HR | See | 9 | |
| 3 | 1.5 | N | See C038 EARTH ON CENTRE TUNNEL | ||
