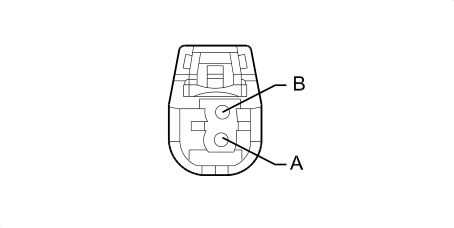

P005 SINGLE-TONE HORN
| Wiring | Colour |
|---|---|
| See 12 FRONT | GRIGIO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| A | 1 | N | See C010A LEFT FRONT EARTH (FRONT) | ||
| B | 1 | Z | See B001A JUNCTION UNIT (FRONT) | 27 | |
