BATTERY SUPPORT/DRIP TRAY - R.R

Operation 5530B52 · BATTERY AND LEADS

1.9 JTD 8v, 1.9 JTD 16v

Removing

- Remove the left-hand bracket.

Op. 7210A03 R.R. BRACKET CONNECTING FRONT END TO SIDE PANEL/STRUT

Op. 5530B10 BATTERY - R+R

Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.

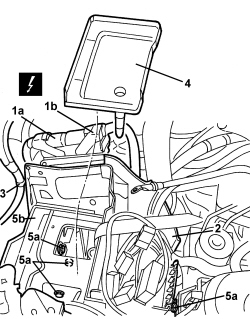

1. Detach electrical connections (1a, 1b).

2. Disconnect the wiring from the junction unit container.

3. Disconnect the wiring from the battery drip tray.

4. Remove the under-battery container.

5. Undo bolts (5a) and remove battery drip tray (5b).

1. If necessary, remove junction unit container (1a) from the battery drip tray, having released retaining buttons (1b) with the special tool.

1. If necessary, remove engine control unit (1a) from the battery drip tray, after undoing nuts (1b).

Refitting

- Check that the battery drip tray is not damaged.

- If removed, position the engine control unit on the battery drip tray and tighten the nuts.

- If removed, position the junction unit container on the battery drip tray and engage the retaining buttons.

- Place the battery drip tray in its housing.

- Tighten the bolts.

- Position the under-battery container.

- Connect the wiring to the battery drip tray.

- Connect the wiring to the junction unit container.

- Connect the electrical connections.

Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.

Op. 5530B10 BATTERY - R+R

Op. 7210A03 R.R. BRACKET CONNECTING FRONT END TO SIDE PANEL/STRUT

1.4 16v, 1.4 16v TJet

Removing

- Remove the left-hand bracket.

Op. 7210A03 R.R. BRACKET CONNECTING FRONT END TO SIDE PANEL/STRUT

Op. 5530B10 BATTERY - R+R

Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.

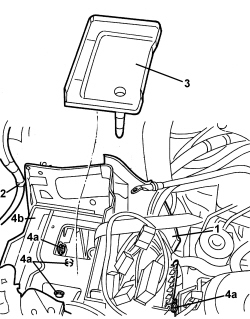

1. Disconnect the wiring from the junction unit container.

2. Disconnect the wiring from the battery drip tray.

3. Remove the under-battery container.

4. Undo bolts (4a) and remove battery drip tray (4b).

1. If necessary, remove junction unit container (1a) from the battery drip tray, having released retaining buttons (1b) with the special tool.

Refitting

- Check that the battery drip tray is not damaged.

- If removed, position the junction unit container on the battery drip tray and engage the retaining buttons.

- Place the battery drip tray in its housing.

- Tighten the bolts.

- Position the under-battery container.

- Connect the wiring to the battery drip tray.

- Connect the wiring to the junction unit container.

Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.

Op. 5530B10 BATTERY - R+R

Op. 7210A03 R.R. BRACKET CONNECTING FRONT END TO SIDE PANEL/STRUT
