INTRODUCTION - CRANKSHAFT

1.4 16v

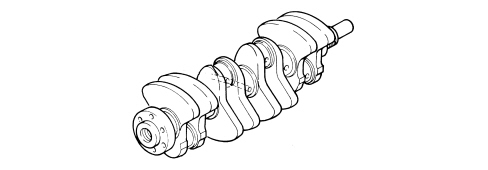

CONSTRUCTION SPECIFICATIONS

Made from induction hardened cast iron. Resting on five main bearings with interposed half-bearings divided into size categories.

The crankshaft endfloat is adjusted by two half-rings housed on the middle main bearing.

Eight counterweights at 180° balance the crankshaft rotary masses with precision. A channel running along the length of the shaft lubricates the main journals and crankpins.

1.9 JTD 8v, 1.9 JTD 16v

CONSTRUCTION SPECIFICATIONS

This is cast iron and rests on five main bearings. Shaft axial clearance is governed by two half-rings housed in the rear main bearing.

Eight counterweights balance the crankshaft rotary masses with precision.

A set of channels run along the length of the crankshaft to lubricate the main journals and crankpins.

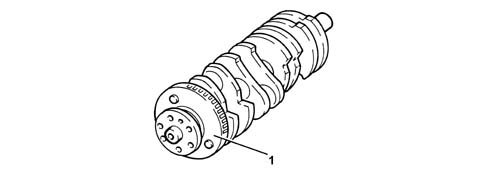

A phonic wheel (1) is fitted at the rear for the rpm sensor.

1.4 16v TJet

CONSTRUCTION SPECIFICATIONS

Made from induction hardened forged steel. Resting on five main bearings with interposed half-bearings divided into size categories.

The crankshaft endfloat is adjusted by two half-rings housed on the middle main bearing.

Eight counterweights at 180° balance the crankshaft rotary masses with precision. A channel running along the length of the shaft lubricates the main journals and crankpins.
