ENGINE MARKING LOCATION

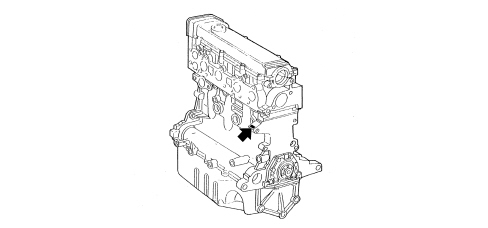

1.4 16v - 1.4 16v T-Jet engine
The engine marking is stamped on the cylinder head resting surface on the crankcase, above the water pump housing.

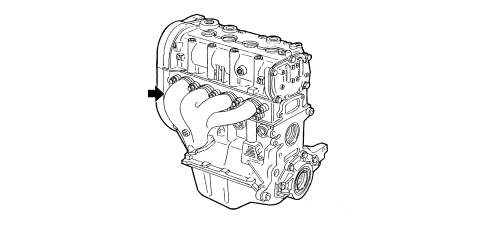

1.9 Multijet 8v engine
The engine marking is stamped on the crankcase, gearbox side.

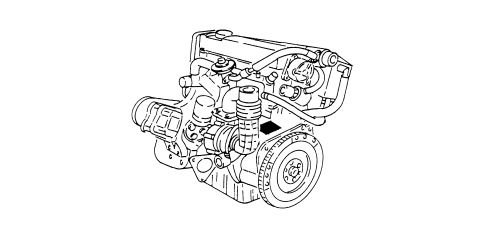

1.9 Multijet 16v engine
The engine marking is stamped on the crankcase, gearbox side.
