V.I.N. PLATE

It is fitted on the engine compartment front crossmember.

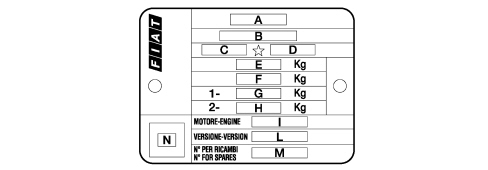

V.I.N. PLATE

It contains the following information:

A. Name of manufacturer.

B. Homologation number.

C. Vehicle type identification code.

D. Chassis manufacturing serial number.

E. Maximum authorised weight of vehicle when fully laden.

F. Maximum authorised weight of vehicle when fully laden plus trailer.

G. Maximum authorised weight on first axle (front).

H. Maximum authorised weight on second axle (rear).

I. Engine type.

L. Bodywork version code.

M. Spares number.

N. Correct value of fume absorption coefficient (Diesel engines only).
