Bonnet lid weatherstrip - r+r

Make

Fiat

Model

Croma Factory Service Manual

Year

2005–2010

Section

Compartment covers › Bonnet lid weatherstrip - r+r

Body fittingsBonnet lid weatherstrip - r+r

BONNET LID WEATHERSTRIP - R+R

Operation 7025A62 · BONNET LID

Removing

- Open the bonnet.

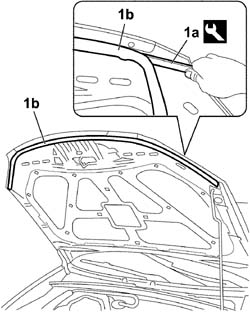

1. Using the special tool (1a), release and remove the weatherstrip (1b) from the bonnet.

Tool	Description	Function	Validity
1878077000	Knife	Retainer removal

Refitting

- Fit the weatherstrip for the bonnet in its housing.

- Check that the mountings for the seal are properly inserted in the housing.
