Q040 driver''s head bag
- Make
- Fiat
- Model
- Croma Factory Service Manual
- Year
- 2005–2010
- Section
- Safety devices › Q040 driver''s head bag
Connectors and pin-outsQ040 driver''s head bag

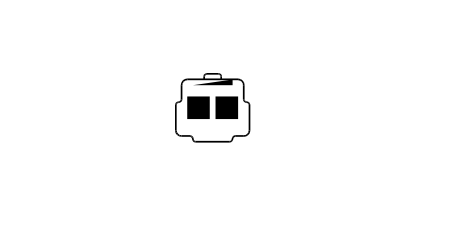

Q040 DRIVER''S HEAD BAG
| Wiring | Colour |
|---|---|
| See 25 REAR | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,5 | AG | See M060A AIR BAG CONTROL UNIT (REAR) | 2 | |
| 2 | 0,5 | CN | See M060A AIR BAG CONTROL UNIT (REAR) | 1 | |
