FUEL SYSTEM - CHECK DELIVERY PRESSURE

Operation 0510C10 · CHECKS ON SYSTEMS

1.8

- Disconnect the front fuel pipe rapid connector from the rail.

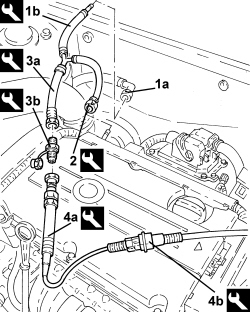

1. Connect the front fuel delivery pipe (1a) to the tool connector (1b).

ToolDescriptionFunctionValidity
1860955000Connector kitSystem pressure check

2. Connect the tool rapid connector to the rail.

ToolDescriptionFunctionValidity
1860955000Connector kitSystem pressure check

3. Connect the tool (3a) ot the three-way connector and to the tool (3b).

ToolDescriptionFunctionValidity
1870885000Rapid attachment connectorSystem pressure check
ToolDescriptionFunctionValidity
1870791000ConnectorOil pressure check1.8

4. Connect the 5 bar transducer (4a) to the tool (3b) and to the EX 01 cable (4b).

ToolDescriptionFunctionValidity
1806338000Examiner transducers kit 2System pressure check
ToolDescriptionFunctionValidity
1806337000Examiner transducers kit 1System pressure check
FUEL SYSTEM - CHECK DELIVERY PRESSURE

- Connect the EX 01 cable to the Examiner using the SAM card.

- Select "instrument" on the Examiner and carry out the "FUEL SYSTEM PRESSURE TEST".
