Engine marking positioning
- Make
- Fiat
- Model
- Croma Factory Service Manual
- Year
- 2005–2010
- Section
- Identification plates › Engine marking positioning
General informationEngine marking positioning
ENGINE MARKING POSITIONING

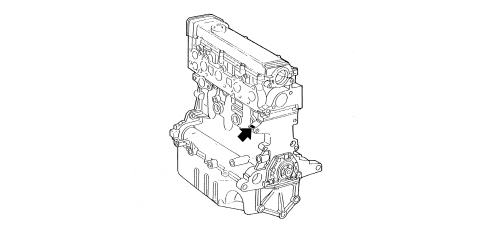

1.8 engine
The engine marking is stamped on the cylinder block/crankcase, gearbox side, near the engine oil filter.

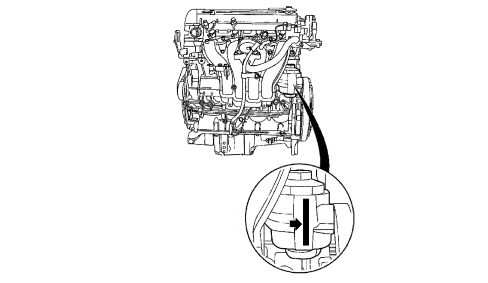

2.2 engine
The engine marking is stamped on the flat part of the engine oil filter case.

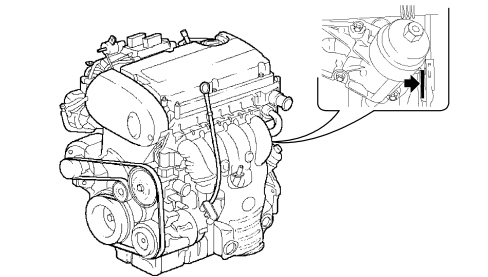

1.9 Multijet 8v engine
The engine marking is stamped on the cylinder block/crankcase, gearbox side.

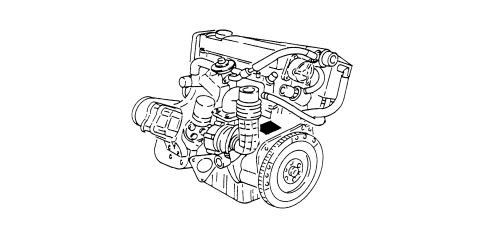

1.9 Multijet 16v - 2.4 Multijet 20v Engine
The engine marking is stamped on the cylinder block/crankcase, gearbox side.
