POWER STEERING PUMP SUPPORT - R R

Operation 4130B32 · POWER STEERING HYDRAULIC SYTEM

2.2

Removing

- Position the vehicle on a lift.

- Make sure that the ignition key is in the OFF position, then disconnect the battery terminal (-).

Op. 4450B04 RIGHT FRONT WHEEL - R.R

Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

Op. 4130B25 POWER STEERING PUMP ASSEMBLY R R FOR VERSIONS WITH AIR CONDITIONER

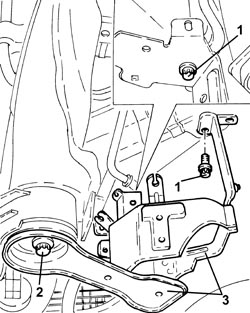

1. Undo the bolts fixing the power steering pump mount to the bodyshell.

2. Undo the bolt securing the power steering pump mount to the front suspension frame.

3. Working from the wheel arch, remove the power steering pump mount.

Refitting

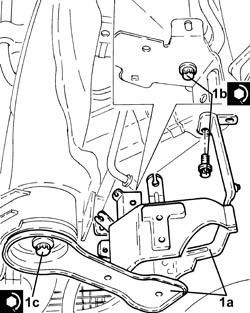

1. Place the power steering pump mount (1a) in its housing and secure it tightening the bolts (1b) and (1c) to the recommended torque.

Op. 4130B25 POWER STEERING PUMP ASSEMBLY R R FOR VERSIONS WITH AIR CONDITIONER

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

Op. 4450B04 RIGHT FRONT WHEEL - R.R

- Connect the negative battery terminal.

Op. 0010T71 POWER STEERING FLUID CHECK LEVEL AND TOP UP IF NECESSARY

Op. 0010T75 HYDRAULIC POWER STEERING SYSTEM BLEED AIR

- Remove the vehicle from the lift.

1.8, 1.9 JTD 8v, 1.9 JTD 16v, 2.4 JTD 20v

Removing

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

Op. 1076B72 INTERMEDIATE EXHAUST PIPE WITH HOSE SECTION - R+R

Op. 1008C34 BRACKET ON GEARBOX FOR LOWER REACTION ROD - R.R.

Op. 4130B25 POWER STEERING PUMP ASSEMBLY R R FOR VERSIONS WITH AIR CONDITIONER

Refitting

Op. 4130B25 POWER STEERING PUMP ASSEMBLY R R FOR VERSIONS WITH AIR CONDITIONER

Op. 1008C34 BRACKET ON GEARBOX FOR LOWER REACTION ROD - R.R.

Op. 1076B72 INTERMEDIATE EXHAUST PIPE WITH HOSE SECTION - R+R

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

Op. 0010T71 POWER STEERING FLUID CHECK LEVEL AND TOP UP IF NECESSARY

Op. 0010T75 HYDRAULIC POWER STEERING SYSTEM BLEED AIR
