REAR BRAKE PADS - REPLACE - INCLUDES HANDBRAKE ADJUSTMENT IF NECESSARY

Operation 3310B60 · REAR DISC BRAKES

Removing

- Remove the the rear wheel.

1. Release the protective boot.

2. Undo the brake caliper fixing bolts.

The bolts fixing the brake caliper are self-locking and should always be replaced each time they are undone or loosened.

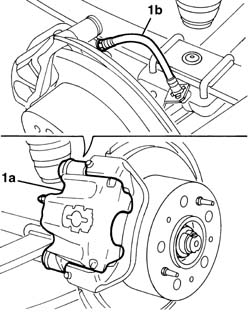

1. Move the caliper (1a) slightly without disconnecting the hydraulic system pipe (1b).

1. Remove the brake pads.

The pads should be replaced if the thickness of the friction material is less than 1.5 mm.

Check that the same type of brake pads are fitted on each pair of wheels.

Refitting

- Place the brake pads in position.

- Place the brake caliper in position.

- Tighten the new brake caliper fixing bolts.

- Fit the protective boots.

- Refit the wheel.

- Check that the brakes are working.
