Q012 passenger air bag (outside)
- Make
- Fiat
- Model
- Ducato Factory Service Manual
- Year
- 2002–2006
- Section
- Safety devices › Q012 passenger air bag (outside)
Connectors and pin-outsQ012 passenger air bag (outside)

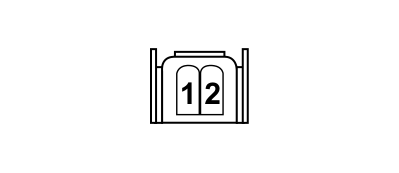

Q012 PASSENGER AIR BAG (OUTSIDE)
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD | GIALLO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,5 | MB | See M060A AIR BAG CONTROL UNIT (DASHBOARD) | 21 | |
| 2 | 0,5 | Z | See M060A AIR BAG CONTROL UNIT (DASHBOARD) | 22 | |
