Q031 passenger side bag

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Safety devices › Q031 passenger side bag

Connectors and pin-outsQ031 passenger side bag

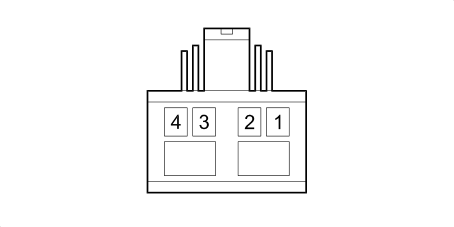

Q031 PASSENGER SIDE BAG

Wiring	Colour
See 61 PRETENSIONERS

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	G		See M060B AIR BAG CONTROL UNIT (PRETENSIONERS)	10
2	0,5	GN		See M060B AIR BAG CONTROL UNIT (PRETENSIONERS)	9
3	0,5	N	X	See C050B AIR BAG SYSTEM EARTH (PRETENSIONERS)	1
				See M060B AIR BAG CONTROL UNIT (PRETENSIONERS)	32
				See M060 AIR BAG CONTROL UNIT	17
				See Q030 DRIVER'S SIDE BAG	3
