Q013 passenger air bag (centre)
- Make
- Fiat
- Model
- Ducato Factory Service Manual
- Year
- 2002–2006
- Section
- Safety devices › Q013 passenger air bag (centre)
Connectors and pin-outsQ013 passenger air bag (centre)

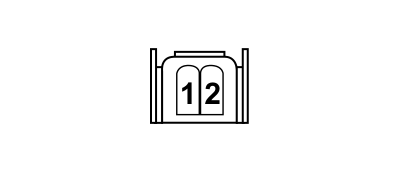

Q013 PASSENGER AIR BAG (CENTRE)
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD | GIALLO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,5 | HB | See M060A AIR BAG CONTROL UNIT (DASHBOARD) | 17 | |
| 2 | 0,5 | VN | See M060A AIR BAG CONTROL UNIT (DASHBOARD) | 18 | |
