CNG CANISTER MOUNTING BRACKET - R.R.

Operation 1042A21 · METHANE GAS CANNISTER AND TUBES FOR RE-CHARGING

2.0 16V

Removing

Position the vehicle on the lift.

Op. 1042E60 CNG CYLINDER UNIT PROTECTION SEAL - R R

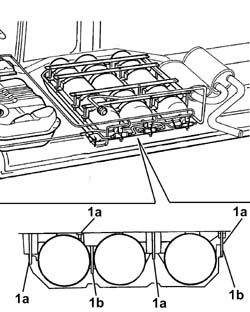

1. Undo the threaded spacer (1a) and the nut (1b) underneath.

2. Remove the canister mounting bracket.

Proceed in the same way for the other brackets. If the brackets are all being removed together, the instructions in the cycle for removing CNG canisters must be followed.

Refitting

Fit the CNG canister mounting bracket and tighten the nut.

1. Tighten the fixing nuts (1a) and (1b) to torque and then the spacers securing the CNG canister brackets.

Op. 1042E60 CNG CYLINDER UNIT PROTECTION SEAL - R R

Remove the vehicle from the lift.
