SOUNDPROOFING LINING FOR BONNET LID - R+R
Removing
- Open the bonnet.

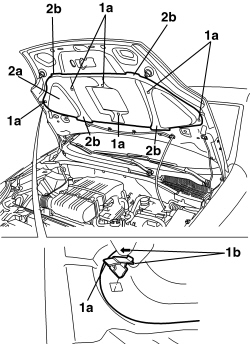

1. Release the retaining clips (1a) pressing the projections (1b) in the direction of the arrow shown in the diagram.
2. Remove the trim (2a) releasing the tabs (2b) from the housings in the bonnet.
Refitting
- Check that the trim is not damaged.
- Position the trim attaching the tabs and secure it using the clips.
- Close the bonnet.
