CLUTCH - R + R WITH GEARBOX REMOVED
Removing
1. Fit the flywheel lock.
| Tool | Description | Function | Validity |
|---|---|---|---|
| 1860846000 | Counter-torque | Flywheel lock |

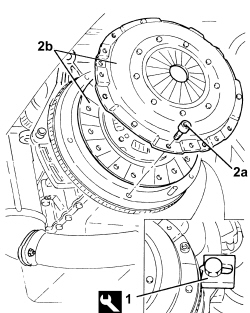

2. Undo the bolts (2a) diagonally and remove the clutch mechanism complete with plate (2b).
The bolts are pre-treated with sealant and therefore they should be replaced each time they are refitted.
Refitting
- Place the clutch mechanism in its housing using a suitable clutch locating tool.
- Tighten the new bolts diagonally securing the clutch mechanism to the recommended torque.
| Component | Fastening | dia | Value (daNm) | Validity |
|---|---|---|---|---|
| Clutch mechanism | Bolt (to be replaced) | M8 | 2.5 ÷ 3.1 | 1.3 Multijet 75 CV |
Removing
1. Fit the flywheel lock.
| Tool | Description | Function | Validity |
|---|---|---|---|
| 1860846000 | Counter-torque | Flywheel lock |
2. Undo the bolts (2a) diagonally and remove the clutch mechanism complete with plate (2b).
The bolts are pre-treated with sealant and therefore they should be replaced each time they are refitted.
Refitting
- Place the clutch mechanism in its housing using a suitable clutch locating tool.
- Tighten the new bolts diagonally securing the clutch mechanism to the recommended torque.
| Component | Fastening | dia | Value (daNm) | Validity |
|---|---|---|---|---|
| Clutch mechanism | Bolt (to be replaced) | M6 | 1.3 ÷ 1.9 | 1.3 Multijet 90 CV |
Removing
1. Fit the flywheel lock.
| Tool | Description | Function | Validity |
|---|---|---|---|
| 1860846000 | Counter-torque | Flywheel lock |
2. Undo the bolts (2a) diagonally and remove the clutch mechanism complete with plate (2b).
The bolts are pre-treated with sealant and therefore they should be replaced each time they are refitted.
Refitting
- Place the clutch mechanism in its housing using a suitable clutch locating tool.
- Tighten the new bolts diagonally securing the clutch mechanism to the recommended torque.
| Component | Fastening | dia | Value (daNm) | Validity |
|---|---|---|---|---|
| Clutch mechanism | Bolt (to be replaced) | M6 | 1.3 ÷ 1.9 | 1.3 Multijet 90 CV |
