ALTERNATOR BRACKETS/MOUNTING/SPACER - R.R

Operation 5530A40 · ALTERNATOR AND COMPONENTS

1.3 Multijet

Removing

- Position the vehicle on the lift.

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 4450B04 RIGHT FRONT WHEEL - R.R

Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

Op. 1092G10 SINGLE ENGINE BELT - R.R

Op. 5530A10 ALTERNATOR - R+R

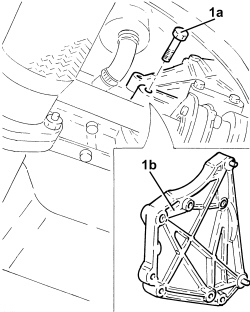

1. Undo the bolts (1a) and remove the alternator mounting (1b).

Refitting

- Check that the alternator support is not damaged.

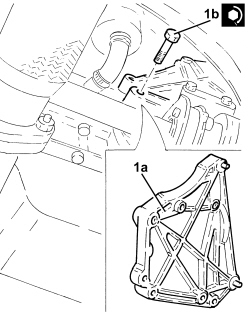

1. Place the alternator mounting (1a) in its housing and secure it tightening the bolts (1b) to the recommended torque.

Component	Fastening	dia	Value (daNm)	Validity
Alternator mounting	Bolt	M8x1.25x45	2.0 ÷ 2.2	1.3 Multijet

Op. 5530A10 ALTERNATOR - R+R

Op. 1092G10 SINGLE ENGINE BELT - R.R

Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

Op. 4450B04 RIGHT FRONT WHEEL - R.R

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.
