ALTERNATOR - R+R

Operation 5530A10 · ALTERNATOR AND COMPONENTS

1.2 8v, 1.4 8v

Removing

Op. 1092B60 ALTERNATOR DRIVE BELT - R + R

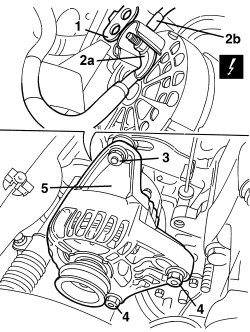

1. Release and open the cover for the alternator electrical connections.

2. Disconnect the electrical connections (2a) and (2b) for the alternator.

3. Undo the nut with the alternator bolt.

4. Undo the alternator fixing bolts.

5. Remove the alternator.

Refitting

- Check that the alternator is not damaged.

- Position the alternator.

- Do up the alternator retaining bolts without tightening.

- Screw in the nut with the alternator bolt without tightening it.

- Connect the electrical connections for the alternator and tighten the nuts.

- Close the cover for the electrical connections.

- Refit the alternator belt and adjust the correct tension.

Op. 1092B60 ALTERNATOR DRIVE BELT - R + R

1.3 Multijet

Removing

- Position the vehicle on the lift.

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 4450B04 RIGHT FRONT WHEEL - R.R

Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

Op. 1092G10 SINGLE ENGINE BELT - R.R

1. Undo the bolt.

2. Release the collar.

3. Release the diesel filter and move it without disconnecting the pipes and the electrical connection.

1. Undo the nuts (1a) and disconnect the electrical connections (1b) from the alternator.

1. Undo bolts (1a) and remove alternator (1b).

Refitting

- Check that the alternator is not damaged.

1. Position alternator (1a) and tighten bolts (1b).

- Connect the electrical connections for the alternator and tighten the nuts.

- Reposition the diesel filter and secure the collar using the bolt.

Op. 1092G10 SINGLE ENGINE BELT - R.R

Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

Op. 4450B04 RIGHT FRONT WHEEL - R.R

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

1.9 Multijet

Removing

- Position the vehicle on the lift.

Op. 1016A10 SOUND-PROOFING COVER - R.R

- Raise the vehicle.

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

Op. 4450B04 RIGHT FRONT WHEEL - R.R

Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

Op. 1092G10 SINGLE ENGINE BELT - R.R

1. Undo the lower bolt (1a) fixing the alternator (1b).

- Lower the vehicle.

1. Undo uppper bolt (1a) fixing the alternator (1b).

2. Loosen bolt (2a) securing anchorage bracket (2b).

3. Turn the bracket and release the alternator.

- Raise the vehicle.

1. Undo nuts (1a) and (1b).

2. Disconnect the electrical connections (2a) and (2b) for the alternator.

1. Undo nuts (1a) and disconnect the exhaust pipe flange (1b).

2. Unscrew bolt (2a) of the power unit rear mount (2b).

3. Push the power unit forward.

4. Recover the alternator.

Refitting

- Check that the alternator is not damaged.

- Position the alternator.

- Connect the electrical connections for the alternator and tighten the nuts.

1. Tighten bolt (1a) of the power unit rear mount (1b).

2. Undo nuts (2a) and disconnect the exhaust pipe flange (2b).

- Fit the lower alternator bolt in position without tightening.

- Lower the vehicle.

1. Fit the alternator with the upper anchorage bracket.

2. Tighten the bolt of anchorage bracket (2a) and alternator retaining bolt (2b).

- Raise the vehicle.

1. Tighten the lower bolt (1a) fixing the alternator (1b).

Op. 1092G10 SINGLE ENGINE BELT - R.R

Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

Op. 4450B04 RIGHT FRONT WHEEL - R.R

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

Op. 1016A10 SOUND-PROOFING COVER - R.R
