Electrical equipmentBose sound system subwoofer - r.r.
BOSE SOUND SYSTEM SUBWOOFER - R.R.
Removing
- Open the tailgate.
1. Undo the bolts.
2. Move the subwoofer slightly.
3. Disconnect the electrical connection.
| Description | Component |
|---|---|
| CENTRE REAR WOOFER SPEAKER | See P049 REAR CENTRE WOOFER SPEAKER |
4. Keep the subwoofer.
Refitting
- Check that the subwoofer is not damaged.

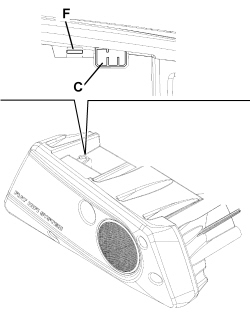

1. Check the condition of the fuse (F) at the rear, next to the electrical connection (C).
- Connect the electrical connection.
- Position the subwoofer.
- Tighten the bolts.
- Test the operation of the audio system.
- Close the tailgate.
