AIR BAG ECU - R+R

Operation 5580C14 · AIR BAG SYSTEM

Removing

- Work on both sides.

Op. 7040A65 CONSOLE SIDE CLOSING (ONE) - R.R.

Op. 7040L22 REAR COVER ON TUNNEL - R.R.

Op. 7040L37 GEAR LEVER TRIM - R.R

Op. 7040L20 TUNNEL COVER - R.R

Op. 5010B70 SIDE CONNECTOR (ONE)BETWEEN AIR. CON. CASING AND DUCT FOR REAR SEATS - R.R.

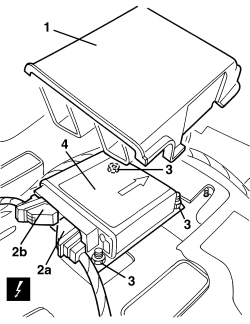

1. Release the protection.

2. Disconnect the electrical connections (2a and 2b) for the control unit.

3. Undo the nuts.

4. Remove the control unit.

Refitting

- Observe the following precautions.

Do not knock or strike the control unit. Do not connect the electrical connections to the control unit before having secured the control unit correctly. Make sure that the battery is disconnected.

In the case of replacement, remove the detachable part of the adhesive label from the new module and place it in the special folder containing the vehicle details (model, registration date, chassis number) and the serial number of the old control unit. The file should be kept for future checks.

1. Position the control unit (1a). Make sure that the arrow (1b) on the top of the control unit is facing the direction of travel.

2. Tighten the fixing nuts to the recommended torque.

- Connect the electrical connections.

- Position the protection and attach it.

Op. 5010B70 SIDE CONNECTOR (ONE)BETWEEN AIR. CON. CASING AND DUCT FOR REAR SEATS - R.R.

Op. 7040L20 TUNNEL COVER - R.R

Op. 7040L37 GEAR LEVER TRIM - R.R

Op. 7040L22 REAR COVER ON TUNNEL - R.R.

Op. 7040A65 CONSOLE SIDE CLOSING (ONE) - R.R.

- Connect the battery.

- Use an Examiner to check that the system has not acquired errors during the operation.
