INTRODUCTION - POWER UNIT UPPORTS

1.3 Multijet

Construction specifications

The power unit supports have a structural connecting function for the power unit and the bodyshell.

They are designed to support the weight of the power unit and the loads from the torque transmitted by the engine.

Each support has a rubber - metal mounting which is designed to dampen the vibrations produced by the engine, thereby reducing most of the vibrations transmitted to the bodyshell.

This is a centre of gravity type power unit support, comprising two mountings plus a reaction rod aligned on one axis for the centre of gravity thereby producing reaction forces.

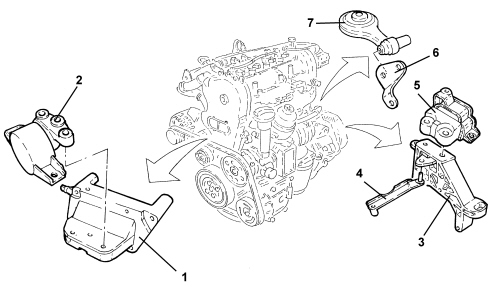

1.3 Multijet 75 CV version

1. Gearbox side rigid mount

2. Timing side flexible block

3. Gearbox side rigid mount

4. Reinforcement for gearbox side rigid support

5. Gearbox side flexible mounting

6. Differential side lower rod mounting bracket

7. Differential side lower reaction rod

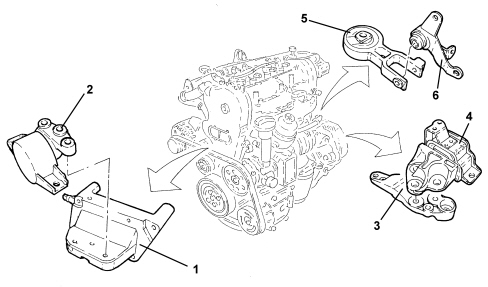

1.3 Multijet 90 CV version

1. Gearbox side rigid mount

2. Timing side flexible block

3. Gearbox side rigid mount

4. Gearbox side flexible mounting

5. Differential side lower reaction rod

6. Differential side lower rod mounting bracket
