HYDRAULIC CLUTCH SYSTEM - BLEED AIR

Operation 0010T67 · VEHICLE FLUIDS

1.3 Multijet · 6 Speed, 90 CV

Op. 5530B10 BATTERY - R+R

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

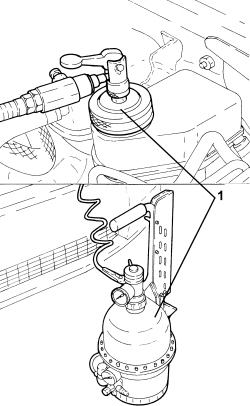

1. Remove the brake/clutch fluid reservoir cap and connect suitable equipment to the reservoir.

1. Remove the protective plug and connect the bleed recovery device (pipe and reservoir) to the bleed cock on the clutch hydraulic/coaxial actuator three-way connector.

2. Open the bleed cock on the clutch hydraulic/coaxial three-way connector.

- Open the tool fluid reservoir tap slowly.

- Wait for all the air in the hydraulic clutch release system to escape.

- Push the oil pipe toward the hydraulic clutch actuator and lock with the clip.

- Close the bleed valve on the clutch hydraulic/coaxial three-way connector and refit the protective cap in its seat.

- Remove the recovery device (pipe and reservoir)

- Remove the brake-clutch bleed equipment.

- Check that the cluch disengages and that the gears engage properly.

- Check the fluid level in the brake-clutch reservoir is correct.

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

Op. 5530B10 BATTERY - R+R

1.3 Multijet · 75 CV

Op. 5530B10 BATTERY - R+R

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

1. Remove the brake/clutch fluid reservoir cap and connect suitable equipment to the reservoir.

1. Remove the protective plug and connect the bleed recovery device (pipe and reservoir) to the clutch hydraulic actuator bleed cock.

2. Lift clip (2a) until the first click is heard (bleed cock open), then move oil pipe (2b) back.

- Open the tool fluid reservoir tap slowly.

- Wait for all the air in the hydraulic clutch release system to escape.

- Push the oil pipe toward the hydraulic clutch actuator and lock with the clip.

- Close the bleed valve on the clutch slave cylinder and refit the protective cap in its seat.

- Remove the recovery device (pipe and reservoir)

- Remove the brake-clutch bleed equipment.

- Check that the cluch disengages and that the gears engage properly.

- Check the fluid level in the brake-clutch reservoir is correct.

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

Op. 5530B10 BATTERY - R+R

1.2 8v, 1.4 8v, 1.4 16v

Op. 5530B10 BATTERY - R+R

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

1. Remove the brake/clutch fluid reservoir cap and connect suitable equipment to the reservoir.

1. Remove the protective plug and connect the bleed recovery device (pipe and reservoir) to the clutch hydraulic actuator bleed cock.

2. Open the clutch hydraulic actuator bleed tap by 180 degrees.

- Open the tool fluid reservoir tap slowly.

- Wait for all the air in the hydraulic clutch release system to escape.

- Close the bleed valve on the clutch slave cylinder and refit the protective cap in its seat.

- Remove the recovery device (pipe and reservoir)

- Remove the brake-clutch bleed equipment.

- Check that the cluch disengages and that the gears engage properly.

- Check the fluid level in the brake-clutch reservoir is correct.

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

Op. 5530B10 BATTERY - R+R

1.9 Multijet

Op. 5530B10 BATTERY - R+R

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

1. Remove the brake/clutch fluid reservoir cap and connect suitable equipment to the reservoir.

1. Remove the protective plug and connect the bleed recovery device (pipe and reservoir) to the bleed cock on the clutch hydraulic/coaxial actuator three-way connector.

2. Open the bleed cock on the clutch hydraulic/coaxial three-way connector.

- Open the tool fluid reservoir tap slowly.

- Wait for all the air in the hydraulic clutch release system to escape.

- Push the oil pipe toward the hydraulic clutch actuator and lock with the clip.

- Close the bleed valve on the clutch hydraulic/coaxial three-way connector and refit the protective cap in its seat.

- Remove the recovery device (pipe and reservoir)

- Remove the brake-clutch bleed equipment.

- Check that the cluch disengages and that the gears engage properly.

- Check the fluid level in the brake-clutch reservoir is correct.

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

Op. 5530B10 BATTERY - R+R

1.3 Multijet · 5 Speed, 90 CV

Op. 5530B10 BATTERY - R+R

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

1. Remove the brake/clutch fluid reservoir cap and connect suitable equipment to the reservoir.

1. Remove the protective plug and connect the bleed recovery device (pipe and reservoir) to the clutch hydraulic actuator bleed cock.

2. Lift clip (2a) until the first click is heard (bleed cock open), then move oil pipe (2b) back.

- Open the tool fluid reservoir tap slowly.

- Wait for all the air in the hydraulic clutch release system to escape.

- Push the oil pipe toward the hydraulic clutch actuator and lock with the clip.

- Close the bleed valve on the clutch slave cylinder and refit the protective cap in its seat.

- Remove the recovery device (pipe and reservoir)

- Remove the brake-clutch bleed equipment.

- Check that the cluch disengages and that the gears engage properly.

- Check the fluid level in the brake-clutch reservoir is correct.

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

Op. 5530B10 BATTERY - R+R
