Power supply and earths › Earths - component location

Wiring diagrams and electrical functionsEarths - component location

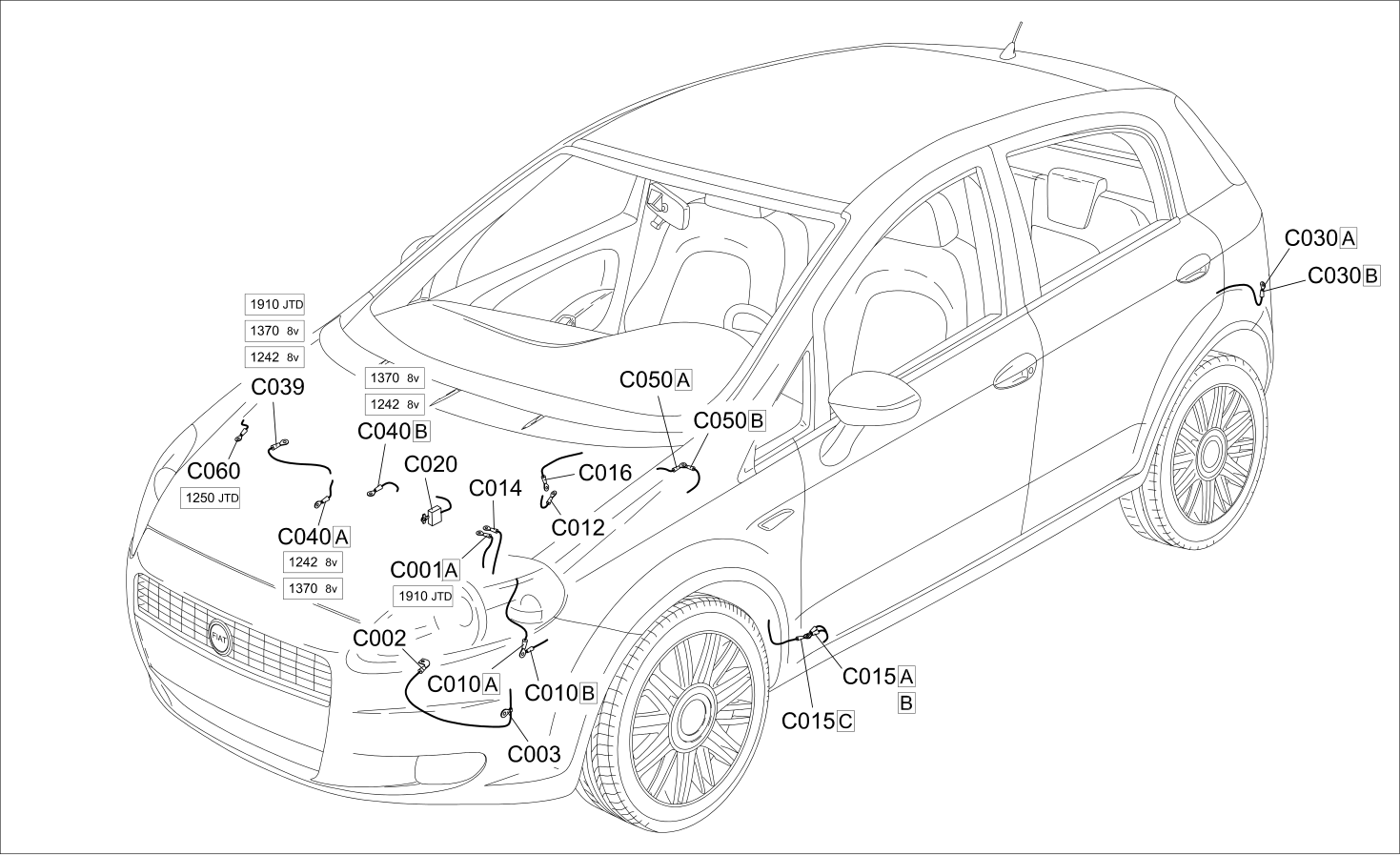

EARTHS - COMPONENT LOCATION

COMPONENT LOCATION

Component code	Description	Reference to the operation
C001	BATTERY EARTH
C002	BATTERY EARTH ON ENGINE	Op. 5530B22 BATTERY EARTH LEAD - R+R
C003	BATTERY EARTH ON BODYSHELL	Op. 5530B22 BATTERY EARTH LEAD - R+R
C010	LEFT FRONT EARTH
C012	ABS FRONT EARTH
C014	ELECTRIC STEERING FRONT EARTH
C015	DASHBOARD EARTH, DRIVER'S SIDE
C016	AIR CONDITIONING UNIT EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
C39	COMPRESSOR EARTH
C040	ENGINE EARTH
C050	AIR BAG SYSTEM EARTH
C060	INJECTION CONTROL UNIT EARTH
