Front seat arm rest

Operation 7045B18 · Front seat head restraint/arm rest

Removing

- 7045A25 squab lumbar knob - r r

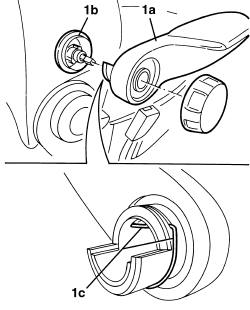

1. Insert a screwdriver between armrest (1a) and panel (1b) to release retaining clip (1c) and take out armrest (1a).

Refitting

Check that the armrest is not damaged.

Place the armrest in position and engage the retaining clip.

Test the armrest works properly and is correctly fitted.
