Introduction - TAILGATE/

The tailgate is manufactured using conventional pressing processes and includes large window bonded flush with the tailgate. The edges that overlap the structure are screen-printed in black.

The window glass contains a demisting circuit, a hole in the lower central area that houses the rear wiper blade. A rear wiper reset reference mark is screen-printed on the left part. The third brake light houses the rear washer spray. The tailgate interior lining cover contains an opening with the emerency opening cable.

The tail-gate can be opened:

• by operating a button in the number plate mount
• by remote control, via a button on the remote control unit.
• emergency cable

The tail-gate is held in position by two gas struts.

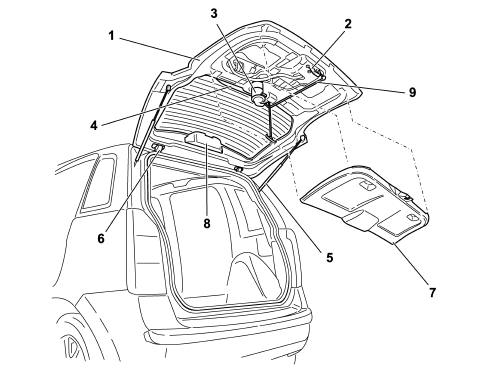

View of tail-gate components

1 - Tailgate

2 - Tail-gate catch

3 - Rear wiper motor

4 - Wiper blade

5 - Telescopic struts

6 - Tailgate hinges

7 - Interior lining

8 - Third brake light/rear washer

9 - Emergency opening cable
