Tailgate interior panel - r+r

Operation 7015A04 · Tailgate assembly

Removing

Open the tailgate.

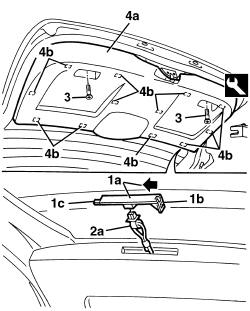

1. Press the trim (1a) in the direction of the arrow and release the retainer (1b) and then the retainer (1c).

2. Disengage the tailgate emergency opening cable terminal (2a) from the trim (1a).

3. Undo the bolts.

4. Remove the panel (4a) after having released the inner retainers (4b) using the special tool.

Refitting

Check that the panel is undamaged and that the internal retainers are undamaged and correctly positioned.

Position the panel attaching the inner retainers.

Tighten the bolts.

Engage the emergency opening cable terminal on the trim.

Fit the trim attaching the retainers.
