Handbrake control and linkage

Description 3380A

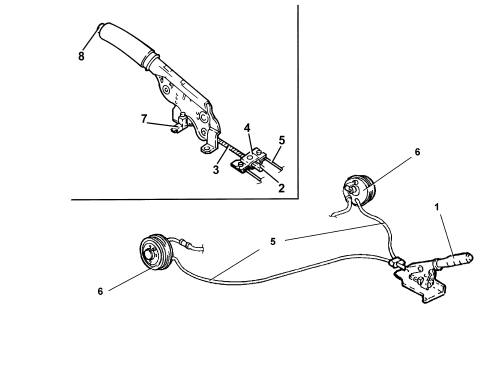

VIEW OF HANDBRAKE ASSEMBLY

1 Handbrake lever

2 Adjustment nut

3 Threaded flexible link

4 Anchor_5. Flexible links

6. Brake calipers/drums

7. Handbrake applied indicator switch

8. Release button

When the handbrake lever is raised, a flexible cable connected to a rocker is operated. The rocker is responsible for balancing and distributing traction force beteen the two flexible links anchored to it. Its movement controls the operation of levers on the rear brake calipers in order to engage the handbrake.

The flexible cable connected to the lever comes with a threaded end so that the travel of the control lever between the two front seats can be adjusted from inside the car.

When the handbrake lever is pulled up, the indicator switch turns on a panel warning light via the Body Computer Characteristic of working principle 5505 ELECTRICAL CIRCUIT FOR INSTRUMENTS/INDICATORSto indicate handbrake application.

The handbrake is kept engaged by a toothed sector that prevents the handle being lowered.

When the release button is pressed, the lever is released and the tension of the links on the levers may be slackened. The levers then release the handbrake under the action of the return spring.
