Handbrake lever - r+r

Operation 3380A10 · Handbrake control and linkage

Removing

Ensure that the ignition key is in the OFF position, then disconnect the negative battery terminal (-).

Proceed with removal - 3380A44 handbrake/linkage protection - r+r

Proceed with removal - 7040L20 tunnel trim - r r

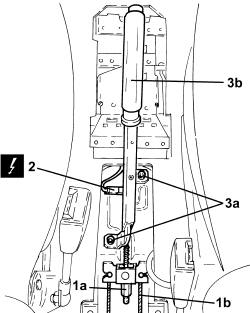

1. Loosen adjustment nut (1a), then disconnect cables (1b) from the mount.

2. Disconnect the electrical connection from the handbrake 'on' warning light switch.

3. Undo the bolts (3a) and remove the handbrake lever (3b).

Refitting

Fit the handbrake lever and tighten the bolts to the specified torque.

Connect the electrical connection to the handbrake 'on' warning light switch.

Connect the cables to the mount.

Proceed with refitting - 7040L20 tunnel trim - r r.

Proceed with refitting - 3380A04 handbrake - check travel.

Proceed with refitting - 3380A44 handbrake/linkage protection - r+r.

Connect the negative (-) battery terminal.
