Fiat Idea Factory Service Manual (2003-2012)21 · Connectors and pin-outs
21 · General

P75 CD multi-player

Make
Fiat
Model
Idea Factory Service Manual
Year
2003–2012
Section
Various consumers › P75 CD multi-player
Connectors and pin-outsP75 CD multi-player

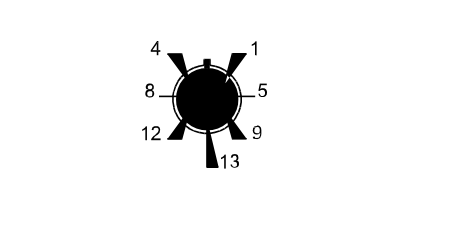

P75 CD multi-player

1.4 16v, 1.3 JTD 16v

P75 CD multi-player
WiringColour
79 CD MULTI
PinCableDestination
Sec.ColourNodeConnect.Pin
21MP20E17
31RP20E15
41VP20E16
6SCHP20E18
81GP20E20
101LP20E13
121CP20E19
131BP20E14
