P20 Radio

Make

Fiat

Model

Idea Factory Service Manual

Year

2003–2012

Section

Various consumers › P20 Radio

Connectors and pin-outsP20 Radio

P20 Radio

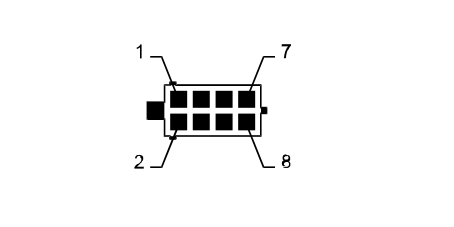

P20A – Facia

1.4 16v, 1.3 JTD 16v

Wiring	Colour
20 FACIA	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		NS		D97S	4
3		BS		D97S	9
4	1.5	R		D97T	7
6		L		D97F	5
8	1.5	N		C20	2

P20B – Facia

1.4 16v, 1.3 JTD 16v

Wiring	Colour
20 FACIA	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1.5	M		D20	8
2	1.5	MB		D20	9
3	1.5	H		D20	10
4	1.5	W		D20	11
5	1.5	S		D20	1
6	1.5	V		D20	5
7	1.5	Z		D20	6
8	1.5	CA		D20	7

P20C – Facia

1.4 16v, 1.3 JTD 16v

Wiring	Colour
20 FACIA	GIALLO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
6		CB		D20	12

P20D – Facia

1.4 16v, 1.3 JTD 16v

Wiring	Colour
20 FACIA	VERDE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
7		BL		D75	4
8		BN		D75	3
9		BV		D75	1
12		N		D75	10

P20E – Cd multi

1.4 16v, 1.3 JTD 16v

Wiring	Colour
79 CD MULTI	AZZURRO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
13	1	L		P75	10
14	1	B		P75	13
15	1	R		P75	3
16	1	V		P75	4
17	1	M		P75	2
18		SCH		P75	6
19	1	C		P75	12
20	1	G		P75	8
