EngineCheck on operation of timing sensor

Check on operation of timing sensor

Check 1060GC

1.3 JTD 16v

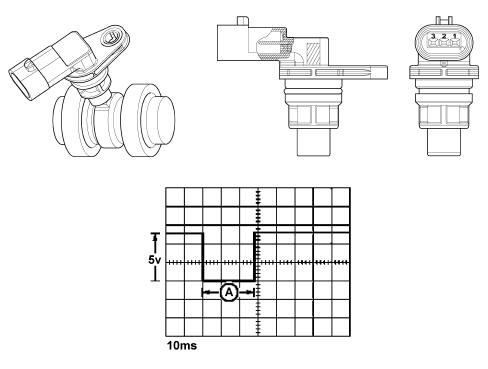

Check that the sensor output signal is similar to the one illustrated in the enclosed graph.

Pin 1 Description: earth Signal type: earth.

Pin 2 Description: timing signal Signal type: frequency output.

Pin 3 Description: supply Signal type: 12 V input.
