Rear seat sliding control CABLE - R.R.

Operation 7050A75 · Rear seat assembly

Removing

- 7040H80 parcel rack

- 7050C05 Single sliding REAR SEAT with split folding squab - R.R.

- 7050C11 Single CUSHION of sliding rear seat - S.R.

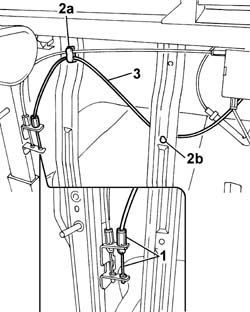

1. Undo the bolts (1a) fixing the movement control handles (1b).

1. Lift up the sliding control handle and disconnect the seat sliding control cable concerned.

1. Disconnect the seat sliding control cable from the guide release device.

2. Release the sliding control cable from the band (2a) and from the band (2b).

3. Remove the seat sliding control cable.

Refitting

Fit the seat sliding control cable and connect it to the guide release device.

Lift up the sliding control handle and connect the seat sliding control cable.

Secure the seat sliding control cable to the bands on the cushion frame.

Position the seat movement control handles in the housing on the cushion frame and tighten the fixing bolts.

Check the operation of the release device on the guides.
