Single CUSHION of sliding rear seat - S.R.

Operation 7050C11 · SLIDING REAR SEATS

Removing

- 7040H80 parcel rack

- 7050C05 Single sliding REAR SEAT with split folding squab - R.R.

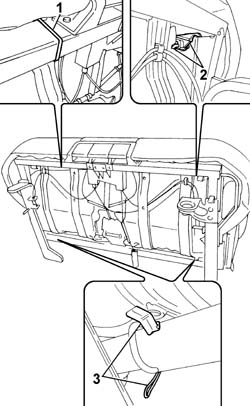

1. With the seat at the bench and resting on a clean surfact to prevent staining the fabric, cut the two plastic bands.

2. Release the upper fastening clips.

3. Release the lower fastening clips.

1. Remove the one-piece cushion assembly from the frame, also releasing it from the rear seat belt rods.

Refitting

Fit the one-piece cushion assembly in the housing on the frame, taking care to position the rear seat belt rods correctly in the actual cushion housings.

Attach the upper and lower cushion clips to the frame.

Using new plastic bands, fasten the cushion to the frame near the seat moving handles.

- 7050C05 Single sliding REAR SEAT with split folding squab - R.R.

- 7040H80 parcel rack
