Rear squab catch device (one) - r+r

Operation 7050A42 · Rear seat assembly

Removing

Lower the rear seat backrest.

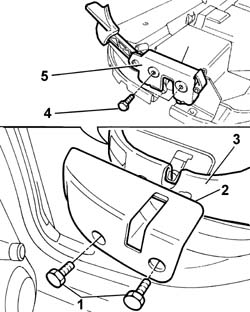

1. Undo the retaining bolts.

2. Remove the protection for the rear seat backrest attachment.

3. Using the cutter, release the cover from the backrest frame until it is possible to gain access to the attachment.

4. Undo the two fixing bolts.

5. Remove the rear seat backrest attachment.

Refitting

Fit the rear seat backrest attachment and tighten the fixing bolt to torque.

Fit the section of the cover moved previously.

Fit the protection for the rear seat backrest attachment.

Tighten the bolts.

Lift up the rear seat backrest.
